Aircraft Handling and Recovery Equipment

ARK - Aircraft Recovery Kit

ARK-Aircraft Recovery Kit



AERIAL RECOVERY KIT (ARK)


NSN: 1670-00-264-8341,     UTI PN: UTI-0007


Suitable for Air Transport of all US Army/US Air Force Aircraft, contains metal and nylon components required for rigging disabled, or able aircraft/helicopters and transporting of the payload by a Prime Mover Helicopter.


Universal Tow Bar - ALBARS

Universal Tow Bar - ALBARS



UNIVERSAL TOW BAR (ALBARS)


Infinitely Adjustable in Length and Width.

Suitable for Towing any Aircraft Configuration of Gross Weight up to 90,000 lbs.

Towing is performed by inserting Tow Pins in aircraft wheel cavities, or by attaching Towbar Hooks to hard points on Aircraft or Helicopters.

One ALBAR fits all Aircraft!



NSN                              PART NO.    TYPE/FUNCTION


1730-01-154-1785    UTl-0008     Length - 8 Ft Width Infinitely Adjustable


1730-01-155-2670    UTl-0015     Length - 15 Ft Width Infinitely Adjustable


1730-01-154-1786    UTl-0020     Length - 20 Ft Width-Infinitely  Adjustable


1730-01-154-1784    UTl-0024     Length - 24 Ft Width-Infinitely  Adjustable


1730-01-542-2560    UTl-0022     Length - 22 Ft Width-Infinitely  Adjustable

Four Legged Cargo Sling

Four Legged Cargo Sling

 FOUR LEGGED CARGO SLING



Used for External Transportation of Air Cargo by Prime Mover Helicopters.


NSN                                PART NO          TYPE/FUNCTION


1670-01-027-2902     UTl-0046-1       10,000 lbs


1670-01-027-2900     UTl-0046-2       25,000 lbs

Sling Apex Fitting Assembly

Sling Apex Fitting Assembly

SLING  APEX FITTING ASSEMBLY


Upper Hook Suspension System.


NSN                                  PART NO              TYPE/FUNCTION


4030-01-048-4045        UTI-0046-1.1       Aluminum Shackle, 10K


4030-01-048-4044        UTI-0046-2.1      Steel Shackle, 25K

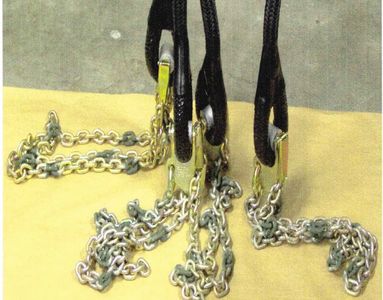

Grab Hook Assembly with Attachments

Grab Hook Assembly with Attachments



GRAB HOOK ASSY, WITH ATTACHMENTS


NSN                                  PART NO              TYPE/FUNCTION


4030-01-048-4056        UTI-0046-1.2       GRAB   HOOK, 10K


4030-01-048-4047        UTI-0046-2.2       GRAB   HOOK, 25K

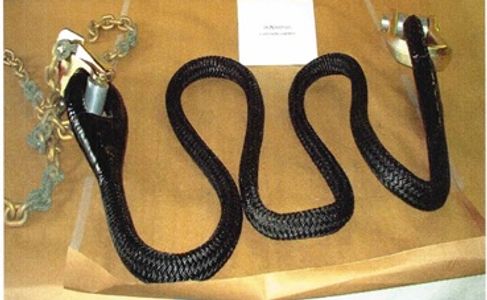

Sling Leg Assembly

Sling Leg Assembly



ONE COMPLETE SLING LEG ASSY


NSN                                 PART NO          TYPE/FUNCTION


4020-01-047-6814       UTI-0526-1       NYLON ROPE ASSY, 10K


4020-01-047-6815       UTI-0526-2       NYLON ROPE ASSY, 25K
