Aerial Delivery ACCESSORIEs

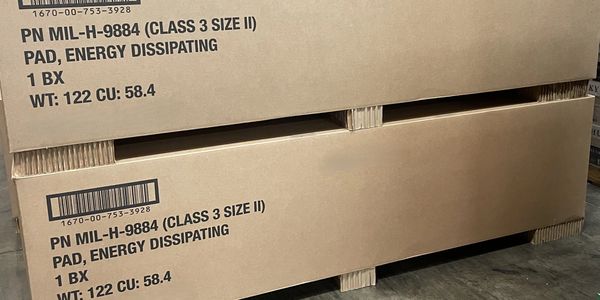

 Honeycomb Energy Dissipating Pad.

NSN: 1670-00-753-3928,

P/N: 66C38607

Alternate: MIL-PRF-9884, Class 3, Size 2.

Sold by the Case (8 Pads per Case).

 Pad Dimension = 36" Wide x 96"Long x 3"High

 Case Dims - 36.5" Wide x 97"Long x 28" High,

Gross Weight = 122lbs, Cubic Volume = 58.4 cu ft.

 Harmonized Tariff: 8803300060

ITAR - End User Information required.

 Honeycomb Energy Dissipating Pad - Custom Size

Note: This does not have an NSN yet.

This is a customizable  version of the NSN EDP and is manufactured with a slightly heavier weight paperboard and it  meets or exceeds MIL-PRF-9884, but

the sheet size can be custom sized for more efficient container packing or use by the user. The EDP height remains 3" High.

Sold by the pallet (16 sheets per pallet).

Pad Length and width dimensions can be custom sized.

Pallet Height = 52" (16 pads plus pallet feet)

Gross Weight Example = 312lbs (96" x 36" x 3" sheet size)

Pallets have corner supports and are stretch wrapped.

Harmonized Tariff: 4823.90.8850

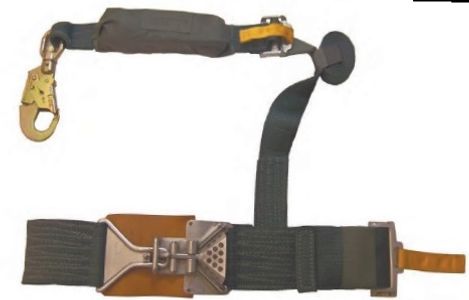

The “Crewman” has been highly upgraded with the decelerator and a safer hook. The unique decelerator and double action, locking, swivel hook decreases the likelihood of injury and/or inadvertent release from the aircraft.

PN: AMTC-B1055-SB & AMTC-B1055-BL

• Swivel eye will accept 7/8” stock and the double locking opening will accept 3/4” diameter stock

• Double action, locking, swivel hook for attachment to the airframe

• Adjustable length: 2-1/2 ft. to 11-1/2 ft.

• Decelerator working load: 600 lbs. force required to start separation

• Colors: Sage Green (SB) or Black

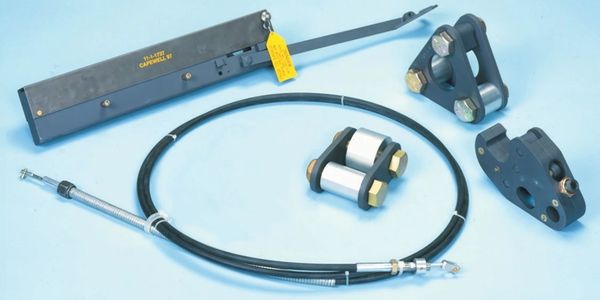

The Extraction Force Transfer Coupling (EFTC) Assembly is designed to transfer the pull force of the extraction parachute from platform extraction to deployment of the main cargo parachute.

The Extraction Force Transfer Actuator (EFTA) is mounted in the Inside and Outside Bracket Assembly attached to the left side of the platform.

The EFTA is connected to the EFTC Latch Assembly via a control cable. Activation of the cable operates the Latch Assembly, releasing the Link Assembly, initiating force transfer.

EFTC COMPONENTS

DESCRIPTION                                      PART #                     NSN

LINK ASSEMBLY                                  11-1-1715-1           1670-00-162-4981

LATCH ASSEMBLY, COUPLING       11-1-1725               1670-01-470-3696

 ACTUATOR ASSEMBLY                     11-1-1737               1670-01-182-1979

LATCH ASSEMBLY, CONNECTOR   11-1-3924               1670-01-470-8333

LINK ADAPTER*                                   11-1-1721               1670-00-162-4979

EFTC CABLE ASSEMBLIES

CABLE LENGTH                PART #                      NSN

12 FT                                    11-1-2061-1            1670-00-434-5797

16 FT                                    11-1-2061-2            1670-00-434-5798

20 FT                                    11-1-2061-3            1670-00-434-5795

24 FT                                    11-1-2061-4            1670-00-434-5796

28 FT                                    11-1-2061-5            1670-00-157-6527

EFTC ASSEMBLIES

CABLE LENGTH          PART #                       NSN

12 FT                              11-1-2060-1             1670-00-434-5783

16 FT                              11-1-2060-2             1670-00-434-5785

20 FT                              11-1-2060-3             1670-00-434-5787

24 FT                              11-1-2060-4             1670-00-434-5782

28 FT                              11-1-2060-5             1670-00-326-7309
